Dump Truck Transport

Highway Dump Trucks. A standard highway dump truck is a truck chassis with a dump body mounted to the frame. The bed is raised by a vertical hydraulic ram mounted under the front of the body, or a horizontal hydraulic ram and lever arrangement between the frame rails and the back of the bed is hinged at the back of the truck. The tailgate can be configured to swing up on top hinges (and sometimes also to fold down on lower hinges)[10] or it can be configured in the "High Lift Tailgate" format wherein pneumatic rams lift the gate open and up above the dump body.

In the United States most standard dump trucks have one front steering axle and one, two, or three rear axles which typically have dual wheels on each side. Tandem rear axles are almost always powered, front steering axles are also sometimes powered. Unpowered axles are generally used to support extra weight. Most unpowered rear axles can be raised off the ground to minimize wear when the truck is empty or lightly loaded, and are commonly called "lift axles".

Off-Highway Dump Trucks. Off-highway dump trucks are heavy construction equipment and share little resemblance to highway dump trucks. Bigger off-highway dump trucks are used strictly off-road for mining and heavy dirt hauling jobs. There are two primary forms: rigid frame and articulating frame. The term "dump" truck is not generally used by the mining industry, or by the manufacturers that build these machines. The more appropriate U.S. term for this strictly off-road vehicle is "haul truck" or "rock truck".

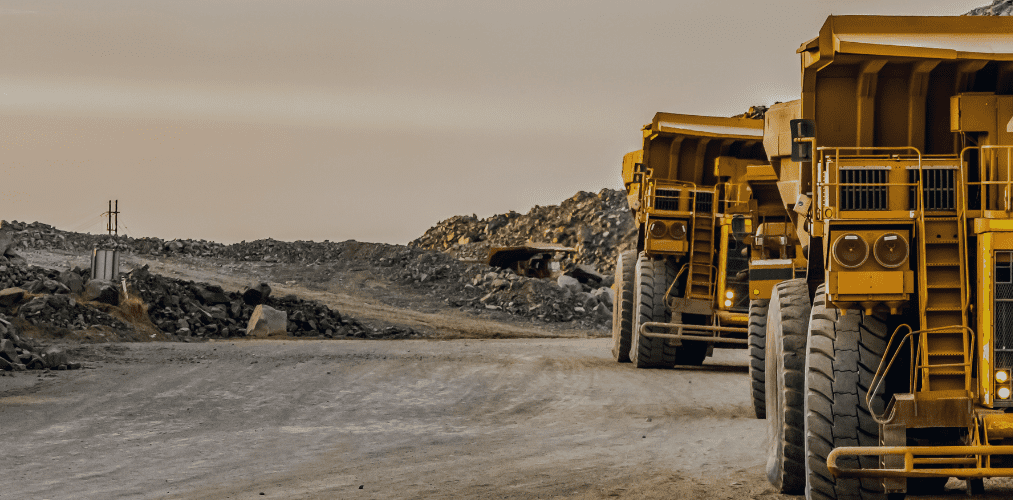

Haul Trucks (aka Off Highway Dump Trucks). Haul trucks are used in large surface mines and quarries. They have a rigid frame and conventional steering with drive at the rear wheel. As of late 2013, the largest ever production haul truck is the 450 metric ton BelAZ 75710, followed by the Liebherr T 282B, the Bucyrus MT6300AC and the Caterpillar 797F, which each have payload capacities of up to 400 short tons (363 t; 357 long tons). Most large-size haul trucks employ Diesel-electric powertrains, using the Diesel engine to drive an AC alternator or DC generator that sends electric power to electric motors at each rear wheel. The Caterpillar 797 is unique for its size, as it employs a Diesel engine to power a mechanical powertrain, typical of most road-going vehicles and intermediary size haul trucks.

Articulated Dump Truck. An articulated dump Truck is an all-wheel-drive, off-road dump truck. It has a hinge between the cab and the dump box but is distinct from a semi-trailer truck in that the power unit is a permanent fixture, not a separable vehicle. Steering is accomplished via hydraulic cylinders that pivot the entire tractor in relation to the trailer, rather than rack and pinion steering on the front axle as in a conventional dump truck. By this way of steering, the trailer's wheels follow the same path as the front wheels. Together with all-wheel drive and low center of gravity, it is highly adaptable to rough terrain.

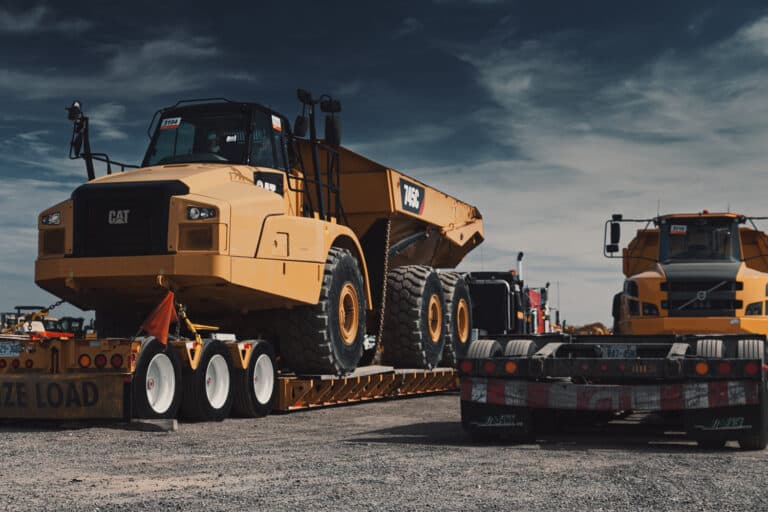

Larger trucks, like articulated off-road dump trucks that are too heavy and wide to operate on public roads can only be transported by trailer. They cannot be driven back and forth from job sites which is why this type of truck needs a special hauler or contractor with the appropriate licensing who will come in for each trip. These machines typically have very poor fuel economy so getting them onto trailers instead is worth it because they need less gas than if these vehicles could drive themselves around town all day long even though their power makes up for any loss in efficiency when compared to smaller cars with better mileage rates.
