Ready Now

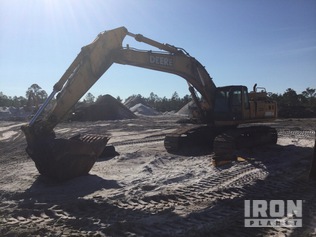

John Deere 450C
RUN COMPLETE・ LOAD # 1664690
A. Length44 ft 6 in
B. Width12 ft 8 in
C. Height18 ft 0 in
D. Attachment8 ft 10 in
Weight15,630 lbs
Item is Operable: No
Starts and moves under its own power: No
Item/Stock #:13075140
Serial #:
PO #:13075140
Cargo Value:3950
Year:2003
Condition:Used
Additional Details:
Air Conditioner, 35.5 in Triple Grouser Track Shoes, 66 in Digging Bucket, Counterweight Removal System, Catwalks
Location
Pickup Site
Osteen FL 32764 USReady to Load: 4/1/2025 9:07 AMHours: -
No loading dockNo loading assistance
Dropoff Site
Pierson FL 32180 USDeliver By: 4/14/2025 5:17 PMHours: Any
No loading dockNo loading assistance
Load Advisor
Item Type: Excavators
Shipper Verified
Shipper has NOT VERIFIED item's dimensions.
Item exceeds height maximum on select trailers.
Loading Dock is not available at pickup location.
Loading Dock is not available at drop-off location.
Due to the dimensions of this item, it requires special consideration. Service providers, please quote accordingly.
Compliance
Permit required for width.
Escort/pilot vehicle required.
Recommended Trailers
Unspecified
Questions & Answers
Question: can you please confirm if tracks can be retracted to transport and reduce width ?
Length of track on the ground is roughly 15 feet. It cannot be shortened and machine does not operate.
Question: CAN YOU CONFIRM THE DIMS, WE TRANSPORT THESE ALL THE TIME AND THEY ARE ALOT SMALLER
Home
Hydraulic ExcavatorJohn Deere450 LC
John Deere 450 LC Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
38.98ft in
C
Shipping Height Of Unit
11.82ft in
I
Max Cutting Height
33.67ft in
J
Max Loading Height
23ft in
K
Max Reach Along Ground
36.75ft in
L
Max Vertical Wall Digging Depth
15.67ft in
M
Max Digging Depth
23.92ft in
Boom/Stick Option (Hex) 1
Arm Length 9ft. 6in.(2.9m )
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
38.69ft in
I
Max Cutting Height
36.33ft in
C
Shipping Height Of Unit
11.42ft in
J
Max Loading Height
25.17ft in
K
Max Reach Along Ground
38.75ft in
L
Max Vertical Wall Digging Depth
21.08ft in
M
Max Digging Depth
25.5ft in
Boom/Stick Option (Hex) 2
Arm Length 11ft. 2in. (3.4m)
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
38.69ft in
I
Max Cutting Height
36.67ft in
J
Max Loading Height
25.5ft in
C
Shipping Height Of Unit
11.42ft in
K
Max Reach Along Ground
40.25ft in
L
Max Vertical Wall Digging Depth
23.08ft in
M
Max Digging Depth
27.08ft in
Boom/Stick Option (Hex) 3
Arm Length 12ft.10in.(3.9m )
Boom/Stick Option (Hex) 4
A
Shipping Length Of Unit
38.39ft in
C
Shipping Height Of Unit
15.29ft in
I
Max Cutting Height
38.92ft in
J
Max Loading Height
28.75ft in
K
Max Reach Along Ground
43.25ft in
M
Max Digging Depth
29.92ft in
Boom/Stick Option (Hex) 4
Arm Length 16ft. 1in. (4.9m)
Max Vertical Wall Dig Depth
27.75ft in
Dimensions
E
Ground Clearance
2.42ft in
G
Height To Top Of Cab
10.77ft in
B
Width To Outside Of Tracks
11.95ft in
D
Length Of Track On Ground
14.67ft in
H
Tail Swing Radius
11.39ft in
Removal Counterweight Clearance
4.43ft in
Undercarriage
F
Track Gauge
9.49ft in
N
Shoe Size
30in
Number Of Carrier Rollers Per Side
3
Max Travel Speed
3.4mph
Ground Pressure
8.69psi
Number Of Track Rollers Per Side
9
Number Of Shoes Per Side
53
Drawbar Pull
79590lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6101 A
Net Power
285hp
Power Measured @
2000rpm
Max Torque
955lb ft
Displacement
619cu in
Aspiration
Turbocharger
Torque Measured @
1300rpm
Operational
Operating Weight
97680lb
Fuel Capacity
160gal
Cooling System Fluid Capacity
10.1gal
Hydraulic System Fluid Capacity
137gal
Engine Oil Capacity
9gal
Operating Voltage
24V
Swing Drive Fluid Capacity
1.6gal
Alternator Supplied Amperage
45amps
Hydraulic System Relief Valve Pressure
4270psi
Hydraulic Pump Flow Capacity
95gal/min
Swing Mechanism
Swing Speed
9rpm
Swing Torque
107004lb ft
Buckets
Reference Bucket Capacity
2.5yd3
